SKU: DJIEMAT4TDSCB1Y

DJI MATRICE 4 THERMAL DOCK (M4TD) STANDALONE UK PLUS COMBO

DJI MATRICE 4 THERMAL DOCK (M4TD) STANDALONE UK PLUS COMBO

£6,437.50
£6,437.50
Sale Sold out
includes VAT Shipping calculated at checkout.

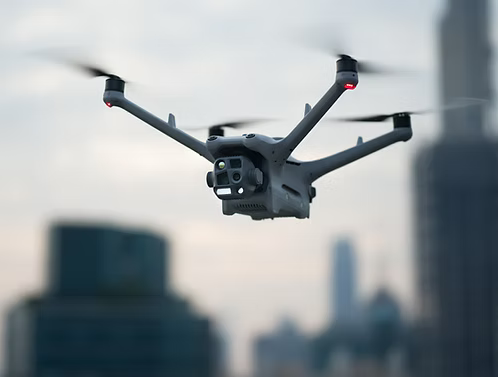

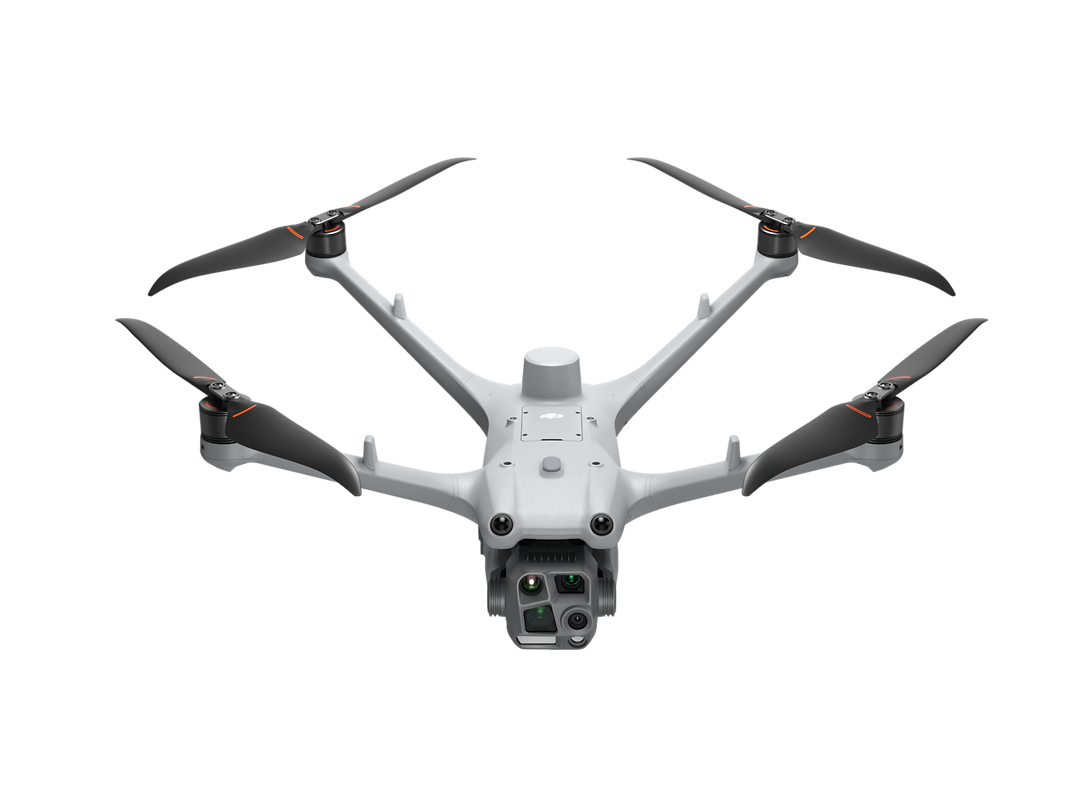

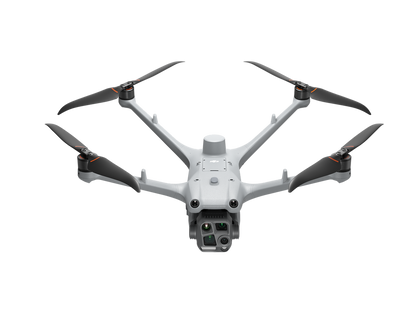

DJI Matrice 4 Thermal Dock is the rugged, fixed-arm sibling of the M4T, sharing the same multi-sensor payload but adding an IP55 weather rating and a 54-minute flight time.

Full Description

DJI Matrice 4 Thermal Dock is the rugged, fixed-arm sibling of the M4T, sharing the same multi-sensor payload but adding an IP55 weather rating and a 54-minute flight time. Its gimbal tilts up to 80 degrees for inspecting bridge undersides and overhead structures

  • The Matrice 4 Thermal Dock M4TD standalone version combo is a compact rain resistant drone with thermal camera, Near Infra Red auxiliary light, tele and medium telephoto cameras, wide-angle camera and laser rangefinder, plus night vision and AI capabilities.

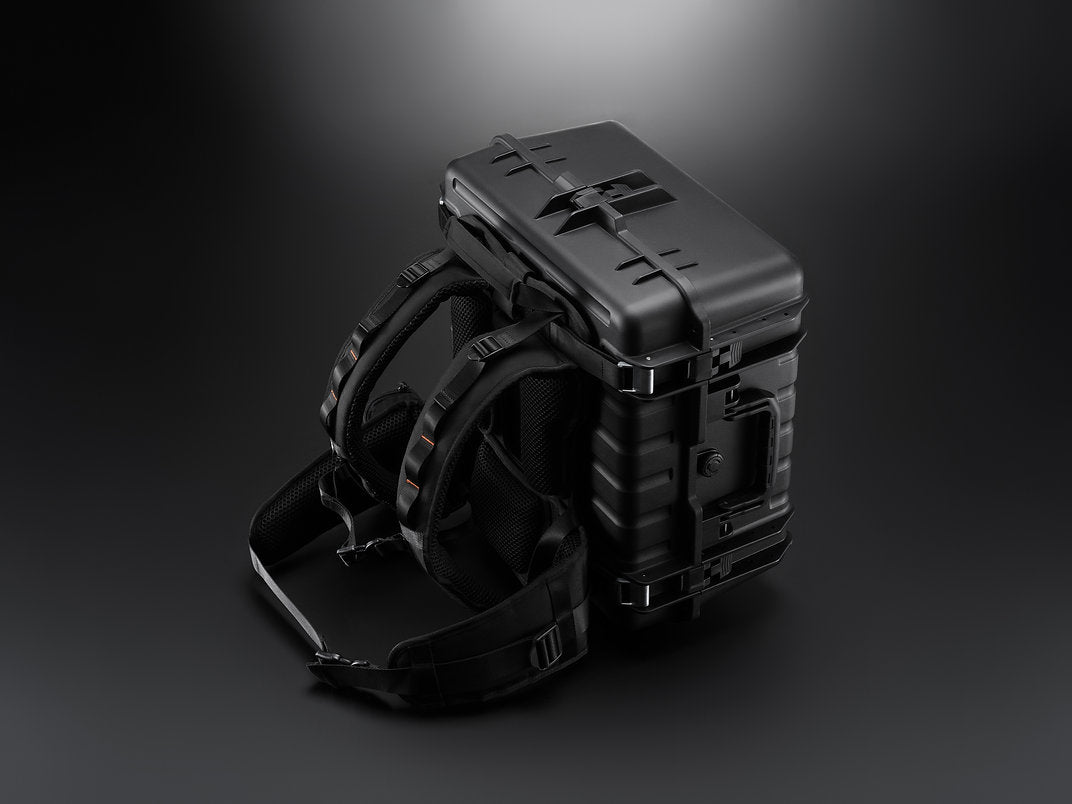

  • The standalone version has its own hard case with back pack and comes with its own RC Plus 2 controller and a single M4D series flight battery.

  • The M4TD is IP55 rated for dust and water ingress resistance.

  • C2 marked - ready for flight in the Open A2 'Near people' category with an A2 CofC qualification.

  • Remember to choose your payloads;  the Matrice 4 Obstacle sensing module, the AL1 Spotlight / AS1 Speaker which can be used separately or together, and DJI's edge processor, the Manifold 3.

  • And don't forget those extras to get the most from your M4TD such as additional flight batteries, the WB37 external battery for the RC Plus 2, RC Plus 2 strap and waist kit, the D-RTK 3 for high-precision positioning and relay

  • Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.

  • Dedicated Survey Assistance - our DJI Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.

  • DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)

  • ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.

  • ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.

In The Box

  • DJI Matrice 4TD drone x 1
  • DJI Matrice 4D series battery x 1
  • DJI RC Plus 2 Enterprise remote controller x 1*
  • DJI Matrice 4D series hard case x 1
  • DJI Matrice 4 series backpack type strap x 1
  • Propellers (pair) x 3
  • DJI 240W power adapter x 1
  • DJI Power adapter to hub fast charge cable x 1
  • DJI Matrice 4D series 240W charging hub x 1
  • Screwdriver set x 1
  • Screwdriver (for remote controller) x 1
  • USB-C to USB-C data cable x 1
  • USB-A to USB-C data cable x 1
  • Gimbal protector x 1
  • MicroSD card x 1
  • M2.5 propeller blade screws x 6
  • Rubber Washers (for Propellers) x 6
  • M1.6 aircraft cellular module compartment screws x 4

*Please note, that the WB37 remote controller battery needs to be purchased separately.

Specifications

  • Weight 1850 g
  • Max Takeoff Weight 2090 g
  • Dimensions 377.7×416.2×212.5 mm (L×W×H, without propellers)
  • Max Ascent Speed6 m/s (Normal Mode)10 m/s (Sport mode)
  • Max Descent Speed6 m/s (Normal Mode)8 m/s (Sport mode)
  • Max Horizontal Speed (at sea level, no wind)Normal Mode, With Obstacle Sensing Enabled:15 m/s flying forward,12 m/s flying backward,10 m/s flying sideways.Sport Mode:21 m/s flying forward,19 m/s flying backward,15 m/s flying sideways
  • When used with DJI Dock, only Normal mode is supported.
  • Max Wind Speed Resistance During Operation: 12 m/s
  • During Takeoff/Landing: 12 m/s
  • Max Takeoff Altitude 6500 m
  • Max Flight Time 54 minute
  • Max Hovering Time 47 minutes
  • Max Operating Radius 10km
  • Max Flight Distance 43 km
  • Max Pitch Angle25° (Normal Mode)30° (Sport Mode)Max Angular Velocity 200°/s
  • Global Navigation Satellite System:GPS + BeiDou + Galileo + QZSS + GLONASS(QZSS and GLONASS are supported only when the RTK module is enabled.)
  • Hovering Accuracy Range (windless or breezy)Vertical:±0.1 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Operating Temperature -20° to 50° C (-4° to 122° F)Ingress Protection Rating IP55
  • Propeller Model 1364F foldable low-noise anti-ice propellers
  • RTK Module Integrated on the aircraft

Sensor Payload details

Image Sensor

Wide:

1/1.3-inch CMOS, Effective Pixels: 48 MP,FOV: 82°

Equivalent Focal Length: 24 mm

Aperture: f/1.7

Focus: 1 m to ∞

Medium Tele Camera:

1/1.3-inch CMOS, Effective Pixels: 48 MP FOV: 35°

Equivalent Focal Length: 70 mm

Aperture: f/2.8

Focus: 3 m to ∞



Telephoto:

1/1.5-inch CMOS, Effective Pixels: 48 MP FOV: 15°

Equivalent Focal Length: 168 mm

Aperture: f/2.8

Focus: 3 m to ∞



NIR Auxiliary Light

Infrared Illumination

FOV: 5.7°±0.3°

Laser Module

Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target*

Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)

Blind Zone: 1 m

Distance Measurement Accuracy:

1–3 m: System Error <0.3 m, Random Error <0.1 meters @1σ

 * Performance degradation may occur in rainy or foggy conditions.

Infrared Thermal Camera

Thermal Imager uncooled vanadium oxide (VOx)



Resolution: 640 × 512

Pixel Pitch: 12 μm

Frame Rate: 30 Hz

Lens DFOV: 45°±0.3°

Equivalent focal length: 53 mm

Aperture: f/1.0

Focus: 5 m to ∞

Sensitivity DJI Matrice 4T: ≤50mk@F1.0

Temperature Measurement Method:  Spot Meter, Area Measurement

Temperature Measurement Range:

High Gain Mode: -20℃ to 150℃ (-4°F to 302°F)

Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)

Palette DJI Matrice 4T:

White Hot / Black Hot / Tint / Iron Red / Hot Iron / Arctic / Medical / Fulgurite / Rainbow 1 / Rainbow 2

Photo Format DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)

Video Resolution DJI Matrice 4T:

1280 × 1024@30fps (Super Resolution enabled, Night Mode off)

640 × 512@30fps (Other conditions)

View full details

frequently asked questions

DJI MATRICE 4 THERMAL DOCK (M4TD) STANDALONE UK PLUS COMBO

The M4TD is the dock version - so why would I buy it as a standalone?

The M4TD's fixed-arm airframe gives you an IP55 rating and a wider operating temperature range (-20°C to 50°C), so it flies reliably in heavy rain, fog and dust where the foldable M4T must stand down. Bought standalone with the RC Plus 2 Enterprise, it's effectively an all-weather M4T with the option to add Dock 3 later.

What's special about the M4TD's gimbal compared to the M4T's?

The M4TD's gimbal tilts up to 80 degrees upwards, making it ideal for inspecting bridge undersides, overhangs and overhead utility infrastructure without having to reposition the aircraft. The standard M4T can't do this.

How long does the M4TD stay in the air vs the M4T?

54 minutes max forward flight (47 hovering) on the M4TD, compared with 49 minutes on the M4T. The heavier rugged airframe accommodates a higher-capacity battery, which also fast-charges from 15% to 90% in under 30 minutes.
