SKU: DJIEMAT4DSCB1Y

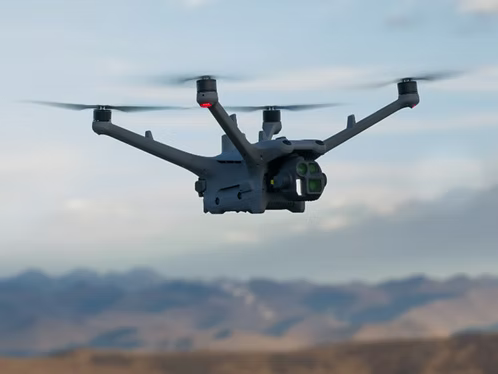

DJI MATRICE 4 DOCK (M4D) STANDALONE UK PLUS COMBO

DJI MATRICE 4 DOCK (M4D) STANDALONE UK PLUS COMBO

Regular price £4,987.50
Regular price Sale price £4,987.50
Sale Sold out
includes VAT Shipping calculated at checkout.
Quantity

DJI Matrice 4 Dock is the rugged, fixed-arm version of the M4E, sharing the same 4/3 CMOS wide-angle, medium-tele and tele cameras but adding an IP55 weather rating and a 54-minute flight time.

Full Description

DJI Matrice 4 Dock is the rugged, fixed-arm version of the M4E, sharing the same 4/3 CMOS wide-angle, medium-tele and tele cameras but adding an IP55 weather rating and a 54-minute flight time.

  • The standalone version has its own hard case with back pack carry straps and comes with its own RC Plus 2 controller and a single M4D series flight battery.

  • The M4D is IP55 rated for dust and water ingress resistance.

  • C2 marked - ready for flight in the Open A2 'Near people' category with an A2 CofC qualification.

  • Remember to choose your payloads;  the Matrice 4 Obstacle sensing module, the AL1 Spotlight / AS1 Speaker which can be used separately or together, and DJI's edge processor, the Manifold 3.

  • And don't forget those extras to get the most from your M4D such as additional flight batteries, the WB37 external battery for the RC Plus 2, RC Plus 2 strap and waist kit, the D-RTK 3 for high-precision positioning and relay

  • Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.

  • Dedicated Survey Assistance - our DJI Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.

  • DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)

  • ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.

  • ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.

In The Box

  • DJI Matrice 4D drone x 1
  • DJI Matrice 4D series battery x 1
  • DJI RC Plus 2 Enterprise remote controller x 1*
  • DJI Matrice 4D series hard case x 1
  • DJI Matrice 4 series backpack type strap x 1
  • Propellers (pair) x 3
  • DJI 240W power adapter x 1
  • DJI Power adapter to hub fast charge cable x 1
  • DJI Matrice 4D series 240W charging hub x 1
  • Screwdriver set x 1
  • Screwdriver (for remote controller) x 1
  • USB-C to USB-C data cable x 1
  • USB-A to USB-C data cable x 1
  • Gimbal protector x 1
  • MicroSD card x 1
  • M2.5 propeller blade screws x 6
  • Rubber Washers (for Propellers) x 6
  • M1.6 aircraft cellular module compartment screws x 4

*Please note, that the WB37 remote controller battery needs to be purchased separately.

Specifications

  • Weight 1850 g
  • Max Takeoff Weight 2090 g
  • Dimensions 377.7×416.2×212.5 mm (L×W×H, without propellers)
  • Max Ascent Speed6 m/s (Normal Mode)10 m/s (Sport mode)
  • Max Descent Speed6 m/s (Normal Mode)8 m/s (Sport mode)
  • Max Horizontal Speed (at sea level, no wind)Normal Mode, With Obstacle Sensing Enabled:15 m/s flying forward,12 m/s flying backward,10 m/s flying sideways.Sport Mode:21 m/s flying forward,19 m/s flying backward,15 m/s flying sideways
  • When used with DJI Dock, only Normal mode is supported.
  • Max Wind Speed Resistance During Operation: 12 m/s
  • During Takeoff/Landing: 12 m/s
  • Max Takeoff Altitude 6500 m
  • Max Flight Time 54 minute
  • Max Hovering Time 47 minutes
  • Max Operating Radius 10km
  • Max Flight Distance 43 km
  • Max Pitch Angle25° (Normal Mode)30° (Sport Mode)Max Angular Velocity 200°/s
  • Global Navigation Satellite System:GPS + BeiDou + Galileo + QZSS + GLONASS(QZSS and GLONASS are supported only when the RTK module is enabled.)
  • Hovering Accuracy Range (windless or breezy)Vertical:±0.1 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Operating Temperature -20° to 50° C (-4° to 122° F)Ingress Protection Rating IP55
  • Propeller Model 1364F foldable low-noise anti-ice propellers
  • RTK Module Integrated on the aircraft

Sensor Payload details

mage Sensor

  • Wide: 4/3-inch CMOS, Effective Pixels: 20 MP
  • Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
  • Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP

Wide Lens

  • FOV: 84°
  • Equivalent Focal Length: 24 mm
  • Aperture: f/2.8-f/11
  • Focus: 1 m to ∞

Medium Tele Camera

  • FOV: 35°
  • Equivalent Focal Length: 70 mm
  • Aperture: f/2.8
  • Focus: 3 m to ∞

Tele Camera

  • FOV: 15°
  • Equivalent Focal Length: 168 mm
  • Aperture: f/2.8Focus: 3 m to ∞

ISO Range Normal Mode: ISO 100 to ISO 25600

Night Scene Mode

  • Wide Camera: ISO 100 to ISO 204800
  • Medium Tele Camera: ISO 100 to ISO 409600
  • Tele Camera: ISO 100 to ISO 409600

Shutter Speed

  • Wide: Electronic Shutter: 2-1/8000 s, Mechanical Shutter: 2-1/2000 s
  • Medium Telephoto: 2-1/8000 s
  • Telephoto: 2-1/8000 s

Max Photo Size

  • Wide: 5280 × 3956
  • Medium Telephoto: 8064 × 6048
  • Telephoto: 8192 × 6144

Minimum Photo Interval DJI Matrice 4E: 0.5 s

Still Photography Modes

  • Wide:Single: 20 MPInterval: 20 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sJPEG + RAW: 2/3/5/7/10/15/20/30/60 sSmart Shooting: 20 MPPanorama: 20 MP (raw image); 100 MP (stitched image)
  • Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP
  • Telephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP

Resolution:

  • 4K: 3840 × 2160@30fps
  • FHD: 1920 × 1080@30fps
  • Max Video Bitrate H.264: 60 Mbps
  • H.265: 40 Mbps

Supported File System exFAT

Photo Format:

  • Wide: JPEG/DNG (RAW)
  • Medium Tele Camera: JPEG
  • Telephoto: JPEG

Video Format MP4 (MPEG-4 AVC/H.264)

Digital Zoom Telephoto: 16x (112x hybrid zoom)

Laser Module

  • Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target*
  • Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
  • Blind Zone: 1 m
  • Distance Measurement Accuracy:1–3 m: System Error <0.3 m, Random Error <0.1 meters @1σOther Distances: ±(0.2 + 0.0015D) (D represents the measurement distance in meters)



  • * Performance degradation may occur in rainy or foggy conditions.
View full details

frequently asked questions

DJI MATRICE 4 DOCK (M4D) STANDALONE UK PLUS COMBO

What's the difference between the M4E and the standalone M4D?

The M4D is the rugged, fixed-arm sibling of the M4E with the same 4/3 CMOS 20MP wide camera plus medium tele and tele cameras. You gain IP55 weather protection, 54-minute flight time and the option to dock-deploy later, but lose foldability for transport.

Can the M4D be flown manually like a normal Matrice, or only via the Dock?

Both. The standalone Combo includes the DJI RC Plus 2 Enterprise controller, so you can fly missions manually exactly like an M4E. The dock compatibility is there if you want to add autonomous deployment later.

Does the M4D include thermal imaging?

No - the M4D is the visible-spectrum mapping variant (wide, medium tele, tele cameras + laser rangefinder). If you need thermal, you want the M4TD instead. The M4D is targeted at surveying, mapping and high-resolution inspection workflows.
