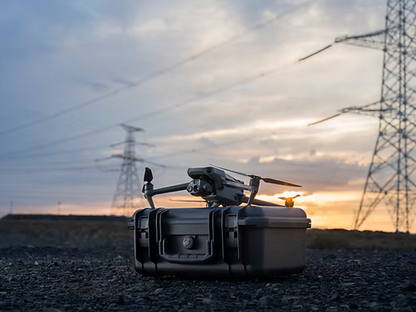

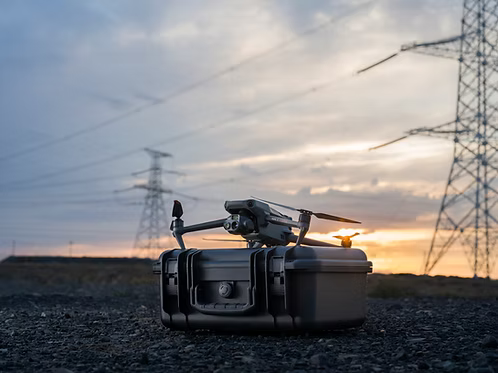

DJI Mavic 3 Thermal Advanced is a triple-camera drone, with visual, zoom, and thermal capabilities.
Full Description
Full Description
DJI Mavic 3 Thermal Advanced is a triple-camera drone, with visual, zoom, and thermal capabilities. It is an upgraded version of the original DJI Mavic 3 Thermal, with an improved thermal camera for enhanced infrared imaging.
The EU-C1 version is under 900g and is EASA C1 class-marked, offering UK drone pilots access to the newly expanded Open A1 'over people' category from the start of 2026.
The M3TA's improved thermal camera offers more accurate temperature measurements, a clearer view at the same distance (improved pixel pitch) , and greater range with the same clarity (improved field of view). It's now pretty much the same sensor specification as the M4T.
Don't forget to add extras, such as additional C1 (4270mAH) flight batteries; Cellular dongle, RTK Module, the D-RTK 2 for high-precision positioning and relay.
-
Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.
-
Dedicated Survey Assistance - our DJI Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.
-
DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)
- ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.
- ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.
In The Box
In The Box
- Mavic 3 Thermal Advanced (EASA-C1 stamped) x 1
- Flight Battery EU-C1 version x 1
- microSD card 64GB x 1
- Gimbal cover x 1
- Low-noise propellers (pairs) x 3
- DJI RC Pro Enterprise x 1
- USB-C Power Adapter x 1
- Power adapter lead (UK/EU) x2
- 100W Power Adaptor x 1
- USB-C Cable x 1
- USB-C to USB-C Cable x 1
- Mavic 3 Series Hard Case x 1
Specifications
Specifications
Max Takeoff Weight 899 g (with DJI Mavic 3 Enterprise Series Battery - EU C1 Version - and DJI Mavic 3 Enterprise Series Low-Noise Propellers)
Dimensions Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Diagonal Distance 380.1 mm
Max Ascent Speed 6 m/s (Normal Mode)
8 m/s (Sport Mode)
Max Descent Speed 6 m/s (Normal Mode)
6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind) 15 m/s (Normal Mode)
Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
*Maximum speed in Sport mode is 19m/s when operating in EU regions.
Max Wind Speed Resistance 12 m/s
*Max wind speed resistance during takeoff and landing.
Max Take-off Altitude Above Sea Level 6000 m (without payload)
Flight Time 36 mins
*With DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)
Max Hover Time (no wind) 30 mins
*(with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)
Max Distance 24 km
(with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers)
Max Tilt Angle 30° (Normal Mode)
35° (Sport Mode)
Max Angular Velocity 200°/s
Sensor Payload details
Sensor Payload details
Wide Camera
Sensor 1/2-inch CMOS, Effective pixels: 48 MP
Lens FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO Range DJI Mavic 3T: 100-25600
Shutter Speed Electronic Shutter: 8-1/8000 s
Max Image Size 8000 x 6000
Still Photography Modes Single: 12 MP/48 MP
Timed: 12 MP/48 MP
JPEG: 2/3/5/7/10/15/20/30/60 s*
Panorama: 12 MP (raw image); 100 MP (stitched image)
Smart Low-light Shooting: 12 MP
* Shooting 48MP photo does not support 2s interval
Video Resolution H.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Bitrate 4K: 85 Mbps
FHD: 30 Mbps
Supported File Formats exFAT
Photo Format JPEG
Video Format MP4 (MPEG-4 AVC/H.264)
Tele Camera
Sensor 1/2-inch CMOS, Effective pixels: 12 MP
Lens FOV: 15°
Format Equivalent: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞
ISO Range 100-25600
Shutter Speed Electronic Shutter: 8-1/8000 s
Max Image Size 4000 x 3000
Photo Format JPEG
Video Format MP4 (MPEG-4 AVC/H.264)
Still Photography Modes Single: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
Smart Low-light Shooting: 12 MP
Video Resolution H.264
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Bitrate 4K: 85 Mbps
FHD: 30 Mbps
Digital Zoom 8x (56x hybrid zoom)
Thermal Camera
Thermal Imager Uncooled VOx Microbolometer
Pixel Pitch 8 μm (previously 12 μm)
Frame Rate 30Hz
Lens DFOV: 32.2°(H)x 25.8°(V) (previously 48.3°(H)x 38.6°(V)
Format Equivalent: 60 mm (previously 40mm on M3T)
Aperture: f/1.0
Focus: 5 m to ∞
Sensitivity ≤50 mk@F1.1
Temperature Measurement Method Spot Meter, Area Measurement
Temperature Measurement Range -20° to 150° C (-4° to 302° F, High Gain Mode)
0° to 500° C (32° to 932° F, Low Gain Mode)
Palette White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format JPEG (8-bit)
R-JPEG (16-bit)
Video Resolution 640 x 512@30fps
Bitrate 6 Mbps
Video Format MP4 (MPEG-4 AVC/H.264)
Still Photography Modes Single: 640×512
Timed: 640×512
JPEG: 2/3/5/7/10/15/20/30/60 s
iFOV 0.88 mrad (previously 1.29mrad)
Infrared Wavelength 8-14 μm
Infrared Temperature Measurement Accuracy ±2° C or ±2% (using the larger value)
frequently asked questions
DJI MAVIC 3 THERMAL ADVANCED (EU-C1)
Has the Mavic 3 Thermal Advanced got an C1 class marking?
Yes, the Mavic 3 Thermal Advanced EU-C1 is EASA C1 Class marked - but you must use the C1 version of the Mavic 3 Intelligent Flight Battery and Low noise propellers.
How many versions of the DJI Mavic 3 Thermal Advanced are there?
There were two, Universal and EU-C1, however, the Universal has been discontinued and stock of the EU-C1 is very low. The EU-C1 has a slightly smaller/lighter battery (4270mAH vs 5000mAh) and low noise propellers; it is C1 class-marked. The max flight time is reduced from 45 mins to 36 mins.
The thermal pitch of the M3TA is smaller compared with the M3T. How does this make it better?
The thermal pitch on the Mavic 3 Thermal Advanced is smaller, so more pixels are packed in closely together, it also has a smaller Field of View, which means it can see a better picture at a longer range. In effect, it's better sensor is zoomed in and therefore clearer than the M3T at the same range and can see the same as the M3T at a longer range.
