SKU: DJIEMAT4TUK1Y

DJI MATRICE 4 THERMAL (M4T) UK PLUS COMBO

DJI MATRICE 4 THERMAL (M4T) UK PLUS COMBO

£4,925.00
£4,925.00
Sale Sold out
includes VAT Shipping calculated at checkout.

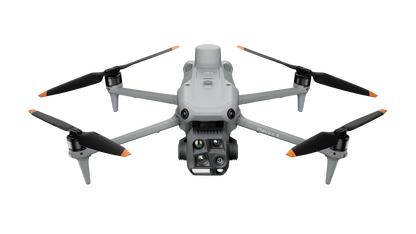

DJI Matrice 4 Thermal is a compact, four-sensor enterprise drone replacing the Matrice 30T. It combines a 48MP wide camera, a medium-tele camera, a 7x telephoto, a 640x512 thermal sensor and a 1,800m laser rangefinder in a folding airframe

Full Description

DJI Matrice 4 Thermal is a compact, four-sensor enterprise drone replacing the Matrice 30T. It combines a 48MP wide camera, a medium-tele camera, a 7x telephoto, a 640x512 thermal sensor and a 1,800m laser rangefinder in a folding airframe.

  • C2 marked - ready for flight in the Open A2 'Near people' category with an A2 CofC qualification.

  • Don't forget to add extras, such as additional flight batteries; RC Plus 2 strap, the D-RTK 3 for high-precision positioning and relay or the AL1 Spotlight / AS1 Speaker which can be used separately or together.

  • Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.

  • Dedicated Survey Assistance - our DJI Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.  The DJI M4T also comes with a free three-month DJI Terra licence.

  • DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)

  • ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.

  • ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.

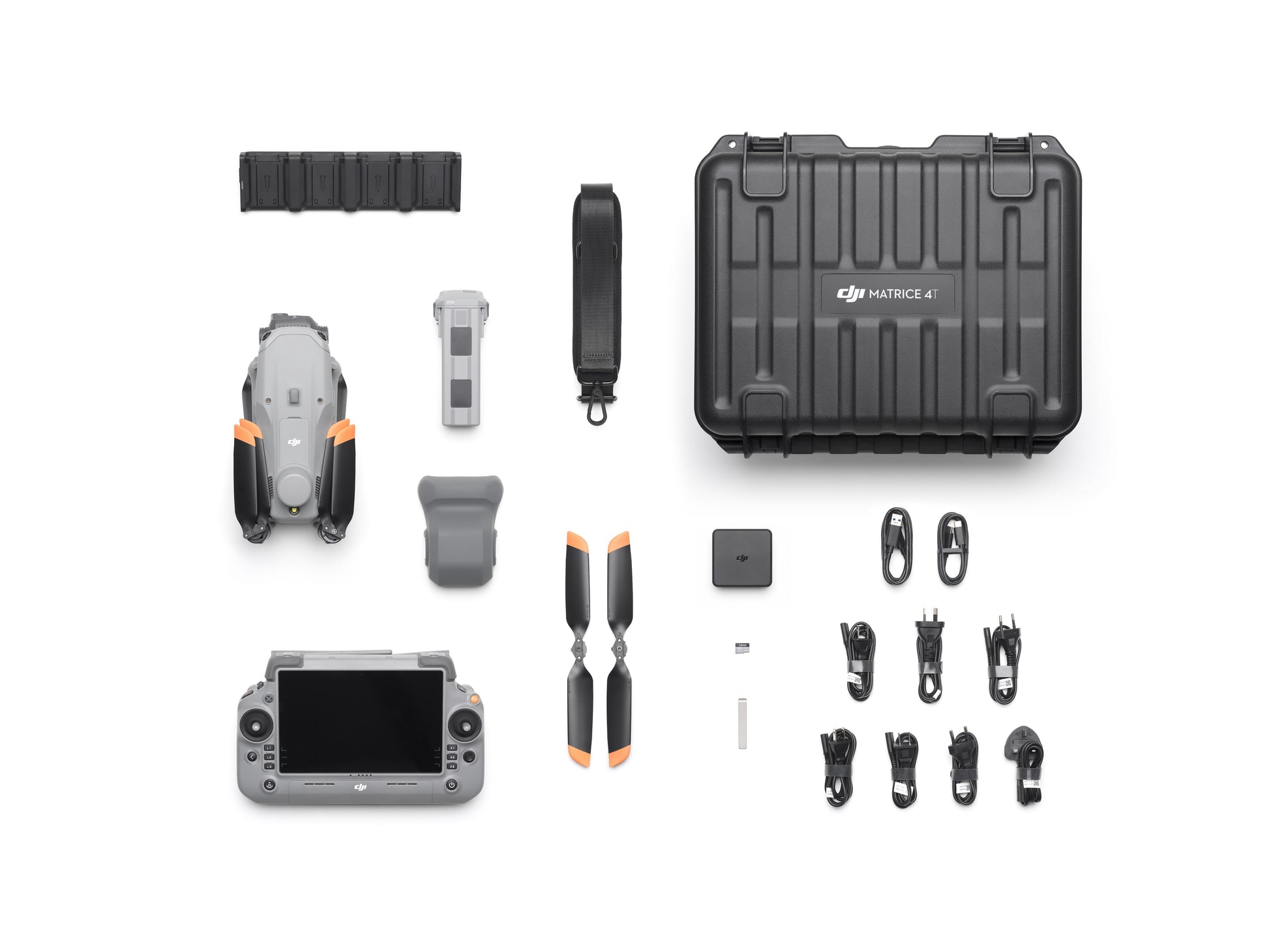

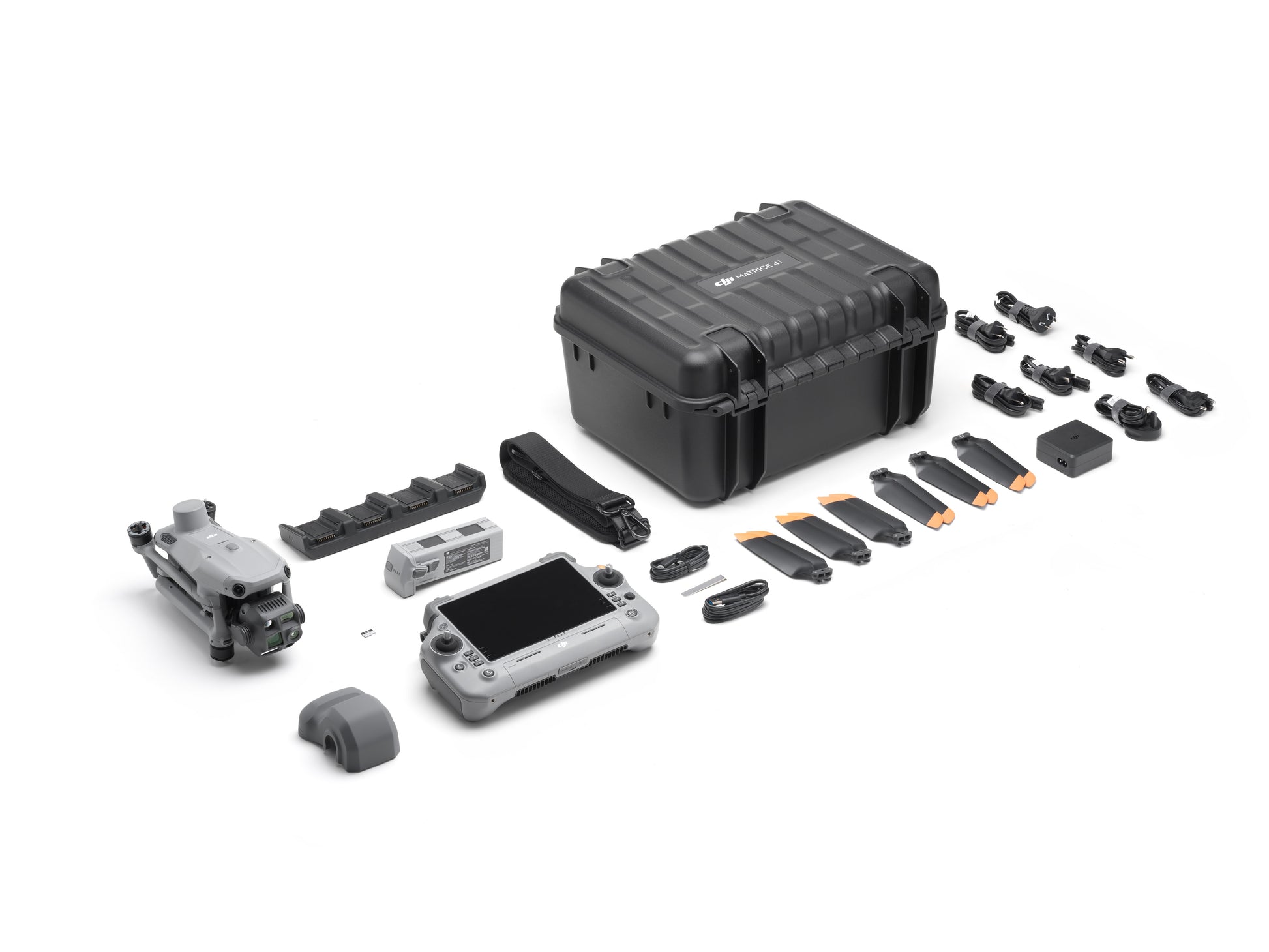

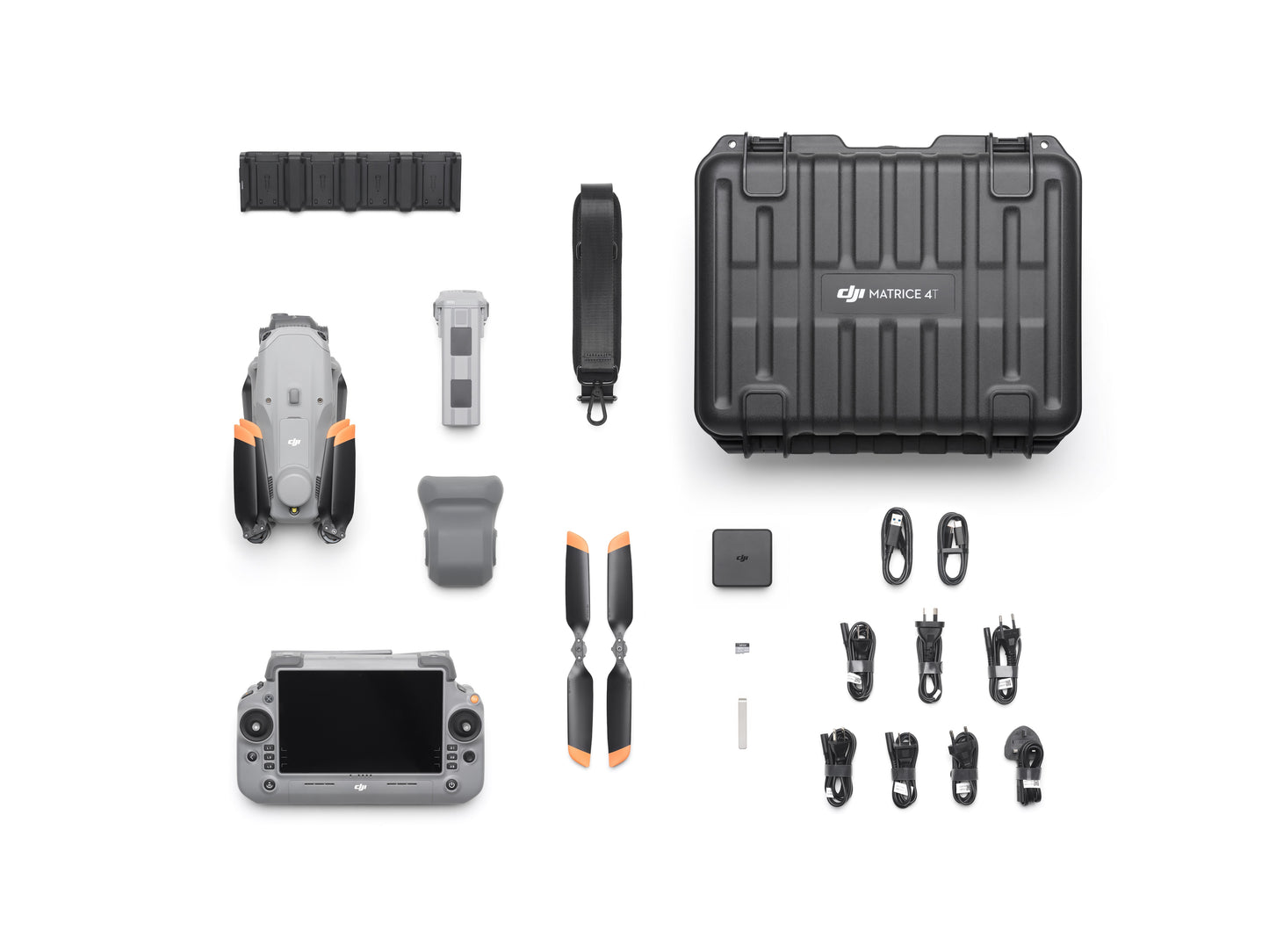

In The Box

  • DJI Matrice 4 Series Hard-Case x1
  • DJI Matrice 4T x1
  • DJI RC Plus 2 Remote Contoller x1*
  • DJI 100W USB-C Power Adapter x1
  • DJI Matrice 4 Series Charging Hub x1
  • Micro SD card (64Gb) x1
  • DJI Matrice 4T Gimbal protector x1
  • DJI Cellular Dongle 2 Pry bar x1
  • DJI Matrice 4 Series Propellers (Pairs) x3
  • 100W Power adaptor AC cable x1
  • USB-C to USB-C data cable x1
  • USB-A to USB-A data cable x1
  • DJI Matrice 4 Series hard case shoulder strap x1

*Please note, that the WB37 remote controller battery needs to be purchased separately.

Specifications

  • Takeoff Weight (with Low-Noise propellers) - 1229 g*
  • Max Takeoff Weight - Low-Noise Propellers: 1430 g

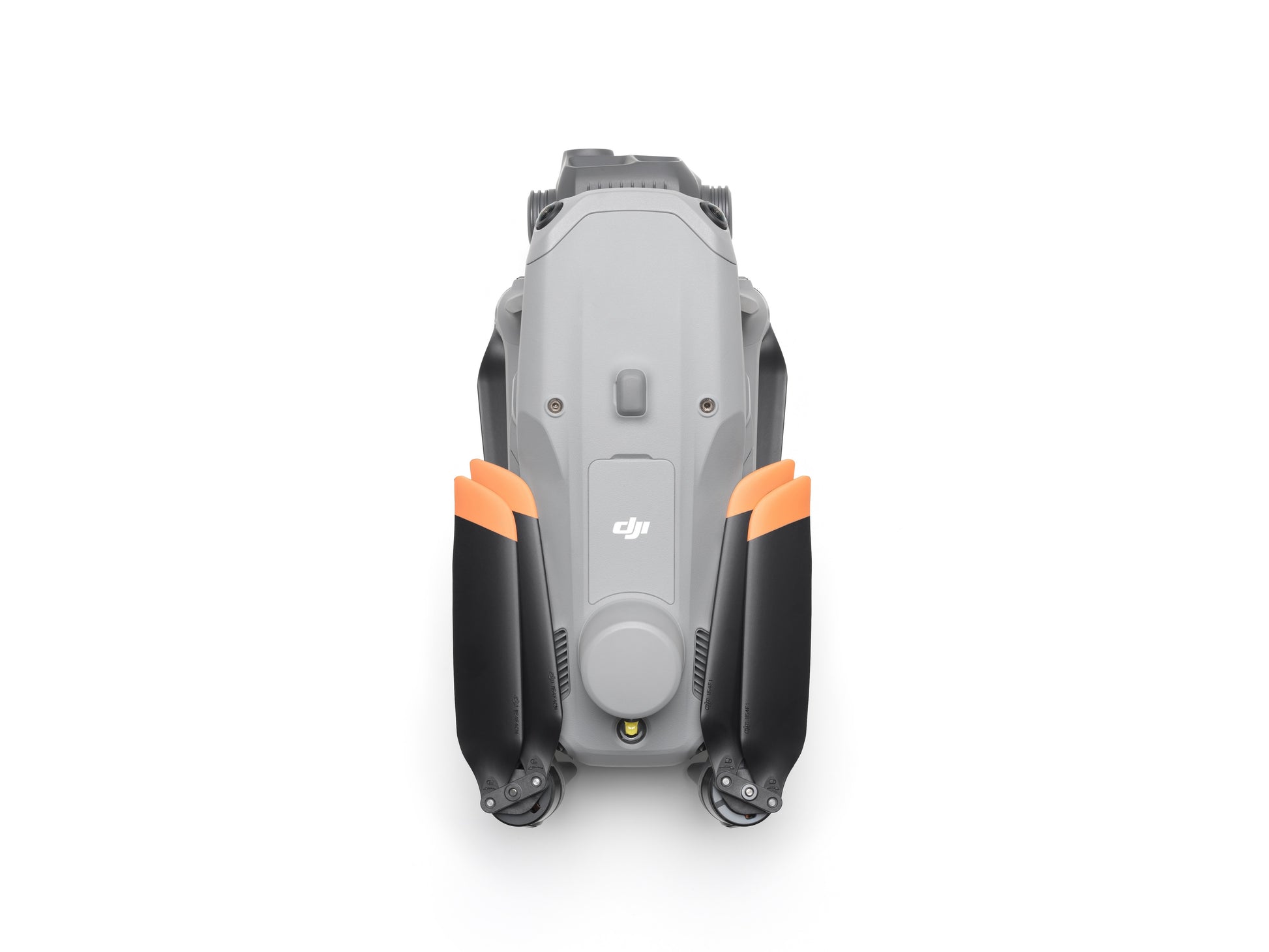

  • DimensionsFolded: 260.6×113.7×138.4 mm (L×W×H)Unfolded: 307.0×387.5×149.5 mm (L×W×H)Maximum dimensions excluding propellers.
  • Max Ascent Speed - 10 m/s
  • Maximum Ascent Speed With Accessories -6 m/s
  • Max Descent Speed - 8 m/s
  • Max Descent Speed With Accessories - 6 m/s
  • Max Horizontal Speed (at sea level, no wind) - 21 m/s21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways
  • Max Altitude - 6000 m
  • Max Operating Altitude with Payload - 4000 m
  • Max Flight Time (without wind)46 min (low-noise propellers)
  • Max Hover Time (without wind)39 min (low-noise propellers)
  • Max Flight Distance (no wind)32 km (low-noise propellers)
  • Max Wind Speed Resistance12 m/s
  • Max Pitch Angle35°
  • Operating Temperature-10℃ to 40℃ (14°F to 104°F)
  • GNSSGPS + Galileo + BeiDou + GLONASS
  • Hovering Accuracy Range (windless or breezy)
  • ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
  • RTK GNSS Accuracy
  • RTK Fix:1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
  • 1154F (low noise propeller)
  • BeaconBuilt into the aircraft

Sensor Payload details

Image Sensor

Wide:

1/1.3-inch CMOS, Effective Pixels: 48 MP,FOV: 82°

Equivalent Focal Length: 24 mm

Aperture: f/1.7

Focus: 1 m to ∞



Medium Tele Camera:

1/1.3-inch CMOS, Effective Pixels: 48 MP FOV: 35°

Equivalent Focal Length: 70 mm

Aperture: f/2.8

Focus: 3 m to ∞



Telephoto:

1/1.5-inch CMOS, Effective Pixels: 48 MP FOV: 15°

Equivalent Focal Length: 168 mm

Aperture: f/2.8

Focus: 3 m to ∞



NIR Auxiliary Light



Infrared Illumination

FOV: 5.7°±0.3°



Laser Module

Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target*

Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)

Blind Zone: 1 m

Distance Measurement Accuracy:

1–3 m: System Error <0.3 m, Random Error <0.1 meters @1σ



* Performance degradation may occur in rainy or foggy conditions.



Infrared Thermal Camera

Thermal Imager uncooled vanadium oxide (VOx)



Resolution: 640 × 512

Pixel Pitch: 12 μm

Frame Rate: 30 Hz

Lens DFOV: 45°±0.3°

Equivalent focal length: 53 mm

Aperture: f/1.0

Focus: 5 m to ∞

Sensitivity DJI Matrice 4T: ≤50mk@F1.0

Temperature Measurement Method:  Spot Meter, Area Measurement

Temperature Measurement Range:

High Gain Mode: -20℃ to 150℃ (-4°F to 302°F)

Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)

Palette DJI Matrice 4T:

White Hot / Black Hot / Tint / Iron Red / Hot Iron / Arctic / Medical / Fulgurite / Rainbow 1 / Rainbow 2

Photo Format DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)

Video Resolution DJI Matrice 4T:

1280 × 1024@30fps (Super Resolution enabled, Night Mode off)

640 × 512@30fps (Other conditions)

View full details

frequently asked questions

DJI MATRICE 4 THERMAL (M4T) UK PLUS COMBO

How quickly can the M4T be in the air after arriving on scene?

The M4T launches in around 15 seconds from its compact folding airframe - faster than any other folding enterprise drone in the DJI lineup. Combined with a 49-minute max flight time, it's well-suited to rapid-response scenarios like missing person searches or first-on-scene fire assessment.

What does the M4T's laser rangefinder actually do for me?

It measures distances accurately up to 1,800m, which means you can tag GPS coordinates of a target (a casualty, a vehicle, a fire hotspot) from nearly 2km away without flying directly over it. It's a substantial upgrade over the Mavic 3T and saves time when standoff matters.

Will the M4T's AI detection work straight out of the box?

Yes - it ships with onboard AI models for detecting people, vehicles and boats in both visible and thermal views, with no cloud processing or latency. For specialist use cases (e.g. livestock counting), you'd need to develop a custom model via the DJI Developer Platform.

DJI MATRICE 4 THERMAL (M4T) UK PLUS COMBO
ASG provides a whole UAS ecosystem to an Emergency Services organisation with equipment selection and provision, flexible training of qualified pilots to a new aircraft type, training of ab-initio pilots and currency training. In addition ASG provide a Drone Management System to assist the Accountable Manager maintain pilot currency and updates to the Operations Manual in line with operational requirements.

Provision of managed service to emergency services
