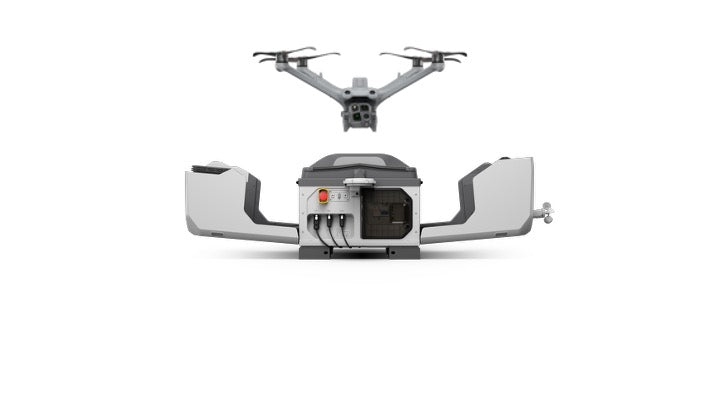

DJI DOCK 3 + MATRICE 4 THERMAL (M4TD) DOCK COMBO

DJI DOCK 3 + MATRICE 4 THERMAL (M4TD) DOCK COMBO

£15,561.67
£15,561.67
Sale Sold out
includes VAT Shipping calculated at checkout.

DJI Dock 3 with Matrice 4 Thermal is a 24/7 autonomous drone-in-a-box system for remote thermal operations. The IP56-rated dock launches the M4TD in 10 seconds and operates from -30°C to 50°C, with vehicle-mounted deployment supported for the first time

Full Description

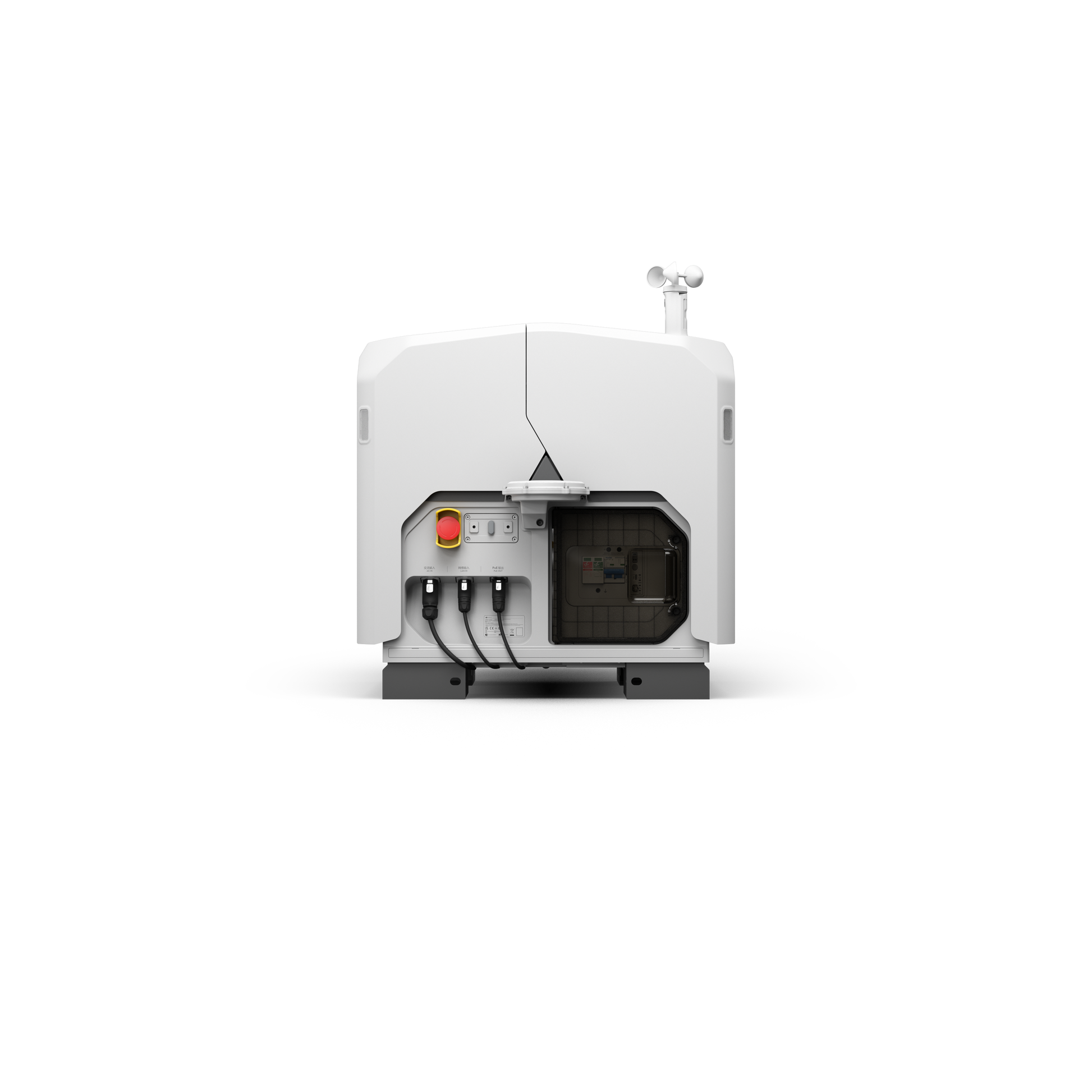

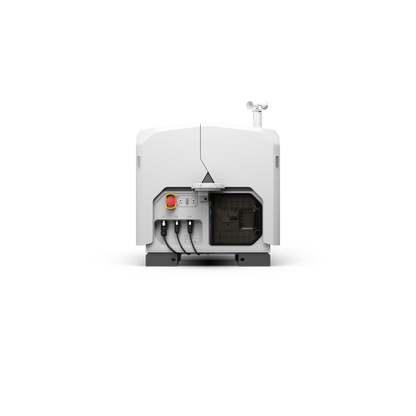

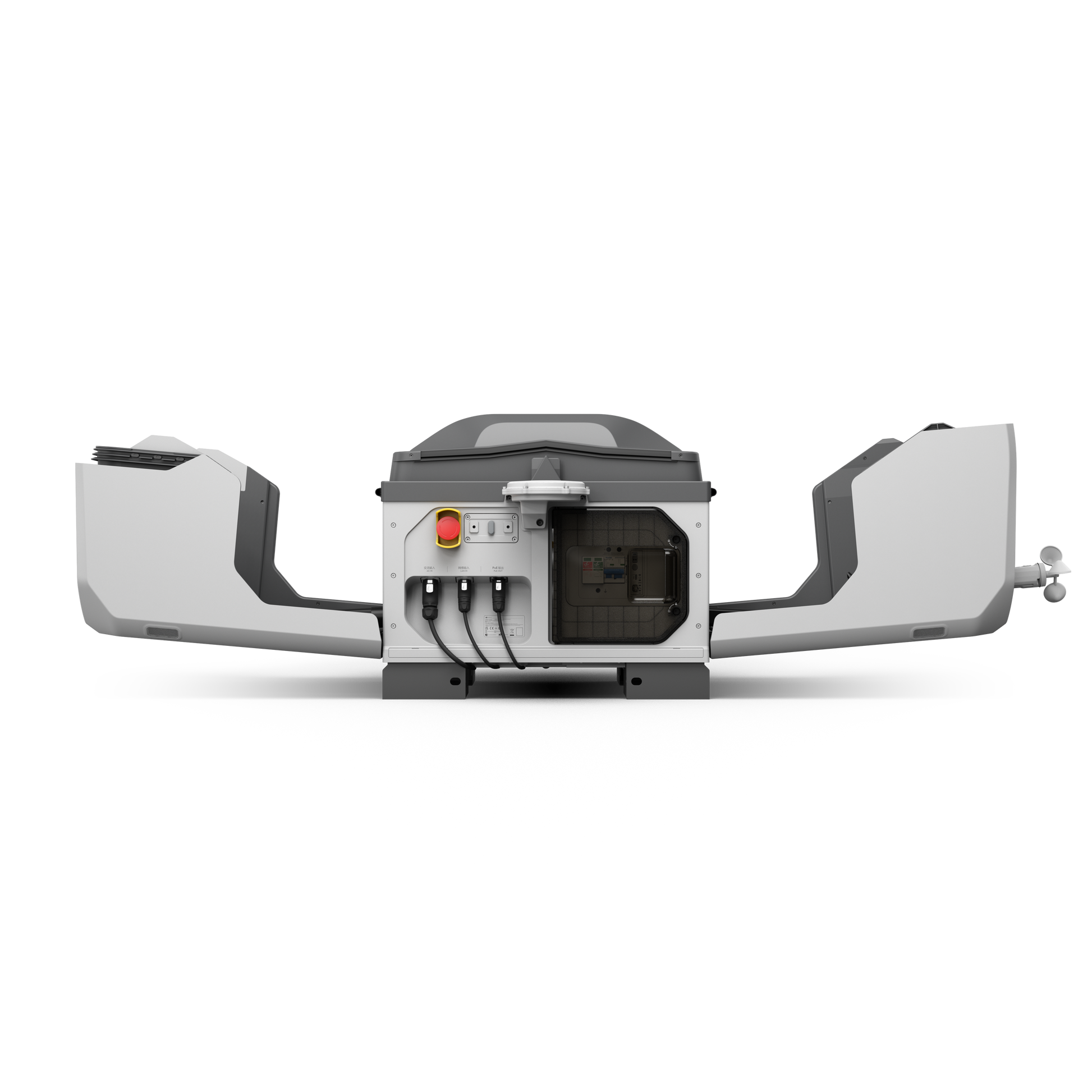

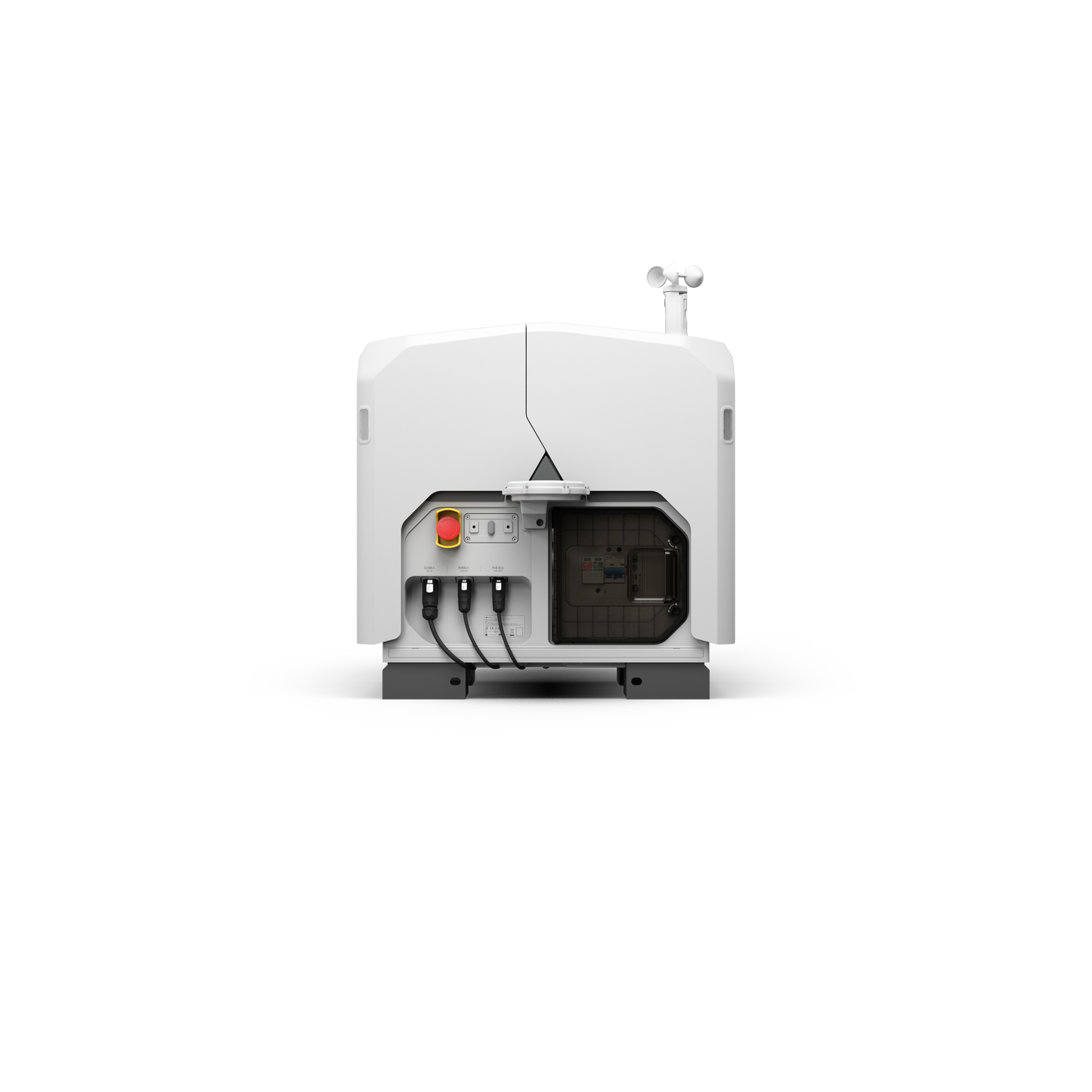

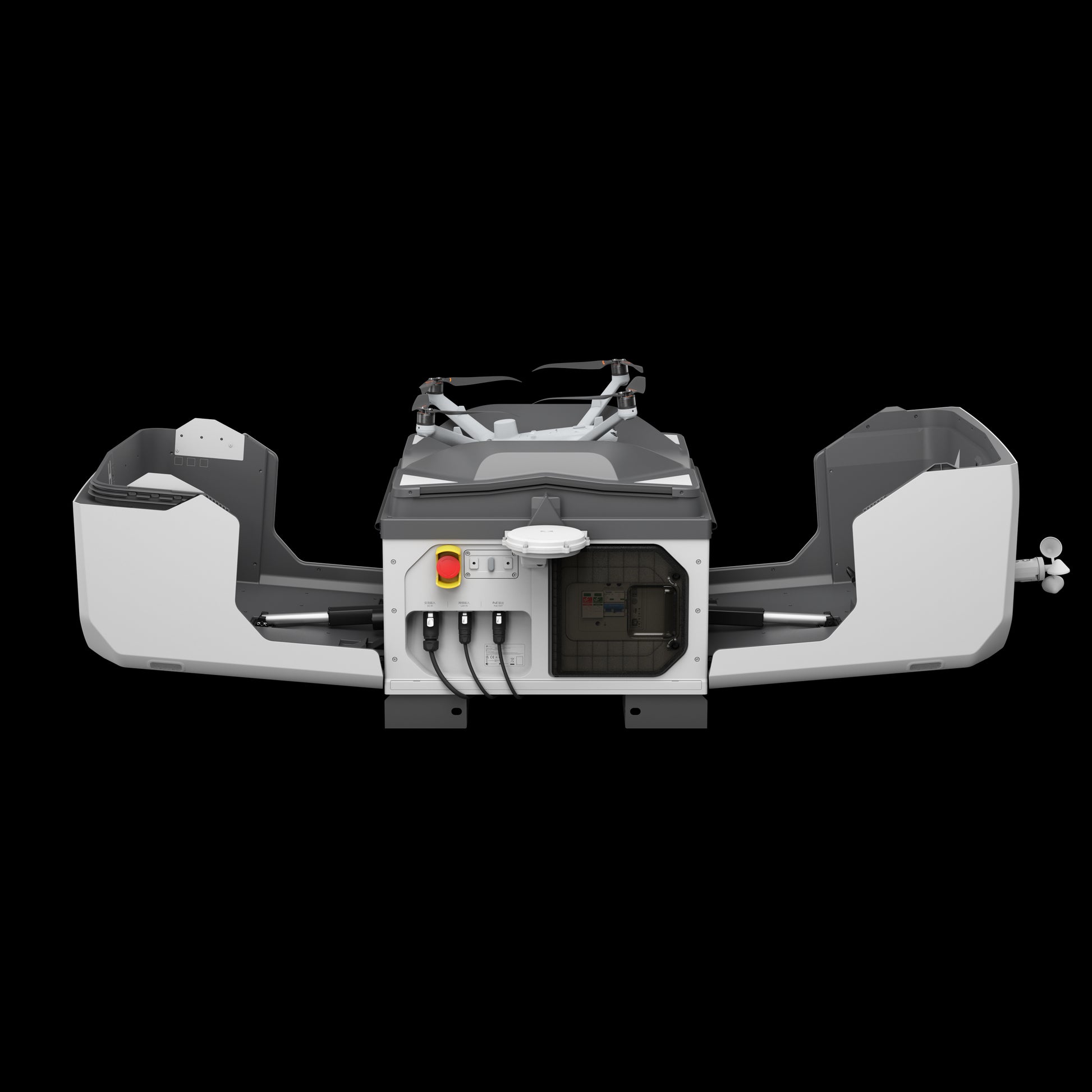

DJI Dock 3 with Matrice 4 Thermal is a 24/7 autonomous drone-in-a-box system for remote thermal operations.

The IP56-rated dock launches the M4TD in 10 seconds and operates from -30°C to 50°C, with vehicle-mounted deployment supported for the first time

  • Paired with the perfectly integrated DJI Matrice 4 Dock M4TD, it is it is ideal for automated surveillance tasking.

  • The M4TD has a thermal camera, Near Infra Red auxiliary light,, tele and medium telephoto cameras, wide angle camera and laser rangefinder, plus night vision and AI capabilities.

  • The Dock 3 is IP56 and the M4TD IP55 rated for dust and water ingress resistance.

  • Remember to choose payloads for your Dock 3 Matrice 4 Thermal Dock Combo - the Matrice 4 Obstacle sensing module, the AL1 Spotlight / AS1 Speaker which can be used separately or together, and DJI's edge processor, the Manifold 3.

  • Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.

  • Dedicated Survey Assistance - our DJI Dock 3 Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.

  • DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)

  • ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.

  • ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.

In The Box

  • DJI Dock 3 x 1
  • Earth Cable x 1
  • Anemometer / Wind speed gauge x 1
  • IP rated power plug x 1
  • IP rated Ethernet plug x 2
  • Power cable crimp ends x 6
  • Screwdriver x 1
  • USB-C to USB-C Cable x 1

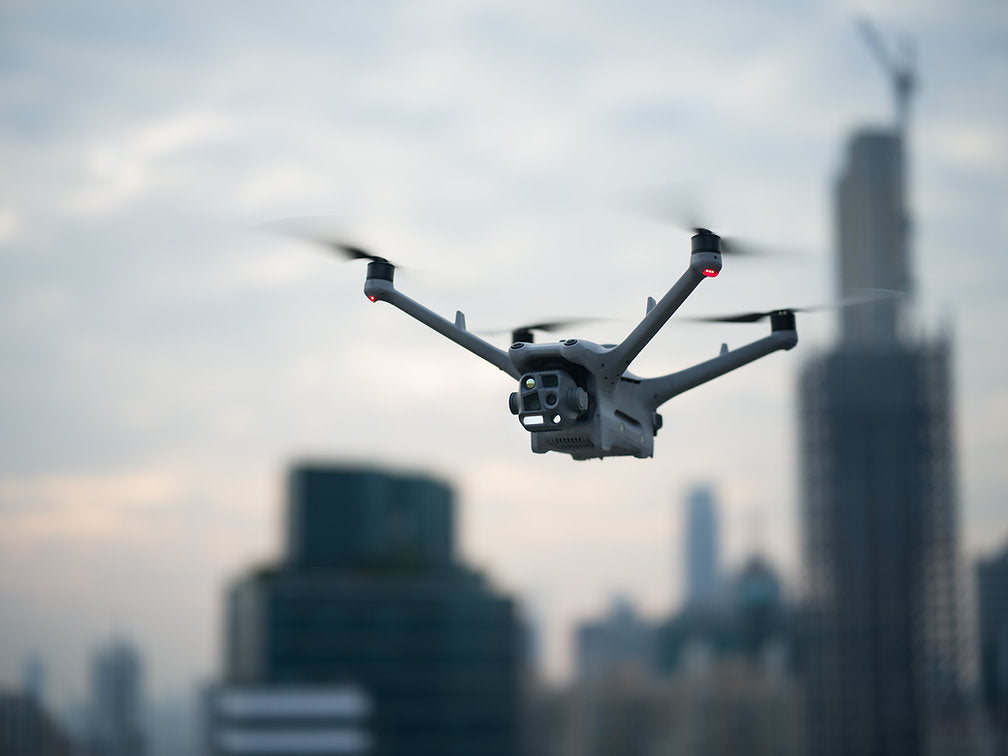

  • DJI Matrice 4TD Drone x 1

Please note, the Dock 3/Matrice 4 Thermal Dock combo is shipped without a M4D Series flight battery so this must be added separately.

Matrice 4 Thermal Dock (M4TD) Specifications

  • Weight 1850 g
  • Max Takeoff Weight 2090 g
  • Dimensions 377.7×416.2×212.5 mm (L×W×H, without propellers)
  • Max Ascent Speed6 m/s (Normal Mode)10 m/s (Sport mode)
  • Max Descent Speed6 m/s (Normal Mode)8 m/s (Sport mode)
  • Max Horizontal Speed (at sea level, no wind)Normal Mode, With Obstacle Sensing Enabled:15 m/s flying forward,12 m/s flying backward,10 m/s flying sideways.Sport Mode:21 m/s flying forward,19 m/s flying backward,15 m/s flying sideways
  • When used with DJI Dock, only Normal mode is supported.
  • Max Wind Speed Resistance During Operation: 12 m/s
  • During Takeoff/Landing: 12 m/s
  • Max Takeoff Altitude 6500 m
  • Max Flight Time 54 minute
  • Max Hovering Time 47 minutes
  • Max Operating Radius 10km
  • Max Flight Distance 43 km
  • Max Pitch Angle25° (Normal Mode)30° (Sport Mode)Max Angular Velocity 200°/s
  • Global Navigation Satellite System:GPS + BeiDou + Galileo + QZSS + GLONASS(QZSS and GLONASS are supported only when the RTK module is enabled.)
  • Hovering Accuracy Range (windless or breezy)Vertical:±0.1 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Operating Temperature -20° to 50° C (-4° to 122° F)Ingress Protection Rating IP55
  • Propeller Model 1364F foldable low-noise anti-ice propellers
  • RTK Module Integrated on the aircraft

Sensor Payload details

Image Sensor

Wide:

1/1.3-inch CMOS, Effective Pixels: 48 MP,FOV: 82°

Equivalent Focal Length: 24 mm

Aperture: f/1.7

Focus: 1 m to ∞



Medium Tele Camera:

1/1.3-inch CMOS, Effective Pixels: 48 MP FOV: 35°

Equivalent Focal Length: 70 mm

Aperture: f/2.8

Focus: 3 m to ∞



Telephoto:

1/1.5-inch CMOS, Effective Pixels: 48 MP FOV: 15°

Equivalent Focal Length: 168 mm

Aperture: f/2.8

Focus: 3 m to ∞



NIR Auxiliary Light



Infrared Illumination

FOV: 5.7°±0.3°



Laser Module

Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target*

Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)

Blind Zone: 1 m

Distance Measurement Accuracy:

1–3 m: System Error <0.3 m, Random Error <0.1 meters @1σ



* Performance degradation may occur in rainy or foggy conditions.



Infrared Thermal Camera

Thermal Imager uncooled vanadium oxide (VOx)



Resolution: 640 × 512

Pixel Pitch: 12 μm

Frame Rate: 30 Hz

Lens DFOV: 45°±0.3°

Equivalent focal length: 53 mm

Aperture: f/1.0

Focus: 5 m to ∞

Sensitivity DJI Matrice 4T: ≤50mk@F1.0

Temperature Measurement Method:  Spot Meter, Area Measurement

Temperature Measurement Range:

High Gain Mode: -20℃ to 150℃ (-4°F to 302°F)

Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)

Palette DJI Matrice 4T:

White Hot / Black Hot / Tint / Iron Red / Hot Iron / Arctic / Medical / Fulgurite / Rainbow 1 / Rainbow 2

Photo Format DJI Matrice 4T: JPEG (8bit), R-JPEG (16bit)

Video Resolution DJI Matrice 4T:

1280 × 1024@30fps (Super Resolution enabled, Night Mode off)

640 × 512@30fps (Other conditions)

Vehicle Mounted Solution

Vehicle mounted perfectly integrated Drone in a Box solution.  Ideal for scaled Inspections, Contruction, Public Safety and Security.

Reliable in extreme conditions - the Dock 3 operates from -30°C to 50°C as it houses a full Air Conditioning / Heating system.

Its IP65 dust and water resistance rating means its can retain integrity and protect its internal systems (and the M4D!) in all weather, giving long term reliable operations.

View full details

frequently asked questions

DJI DOCK 3 + MATRICE 4 THERMAL (M4TD) DOCK COMBO

How fast does the M4TD launch from Dock 3?

10 seconds from dock open to airborne, thanks to advanced GNSS standby. That's a meaningful improvement over Dock 2 and matters for time-critical deployments like alarm responses or perimeter intrusion alerts.

Can Dock 3 actually be deployed on a vehicle?

Yes - Dock 3 is the first DJI dock to support vehicle-mounted deployment, with horizontal calibration and cloud-based location calibration. You can even mount two docks on one vehicle for dual-drone rotations on continuous coverage missions.

What weather can the Dock 3 + M4TD combo realistically handle?

The Dock is IP56-rated and operates from -30°C (with preheating) up to 50°C. The M4TD itself is IP55 with low-noise anti-ice propellers and stable flight in winds up to 12 m/s, so the system is genuinely usable year-round across most UK climates.
