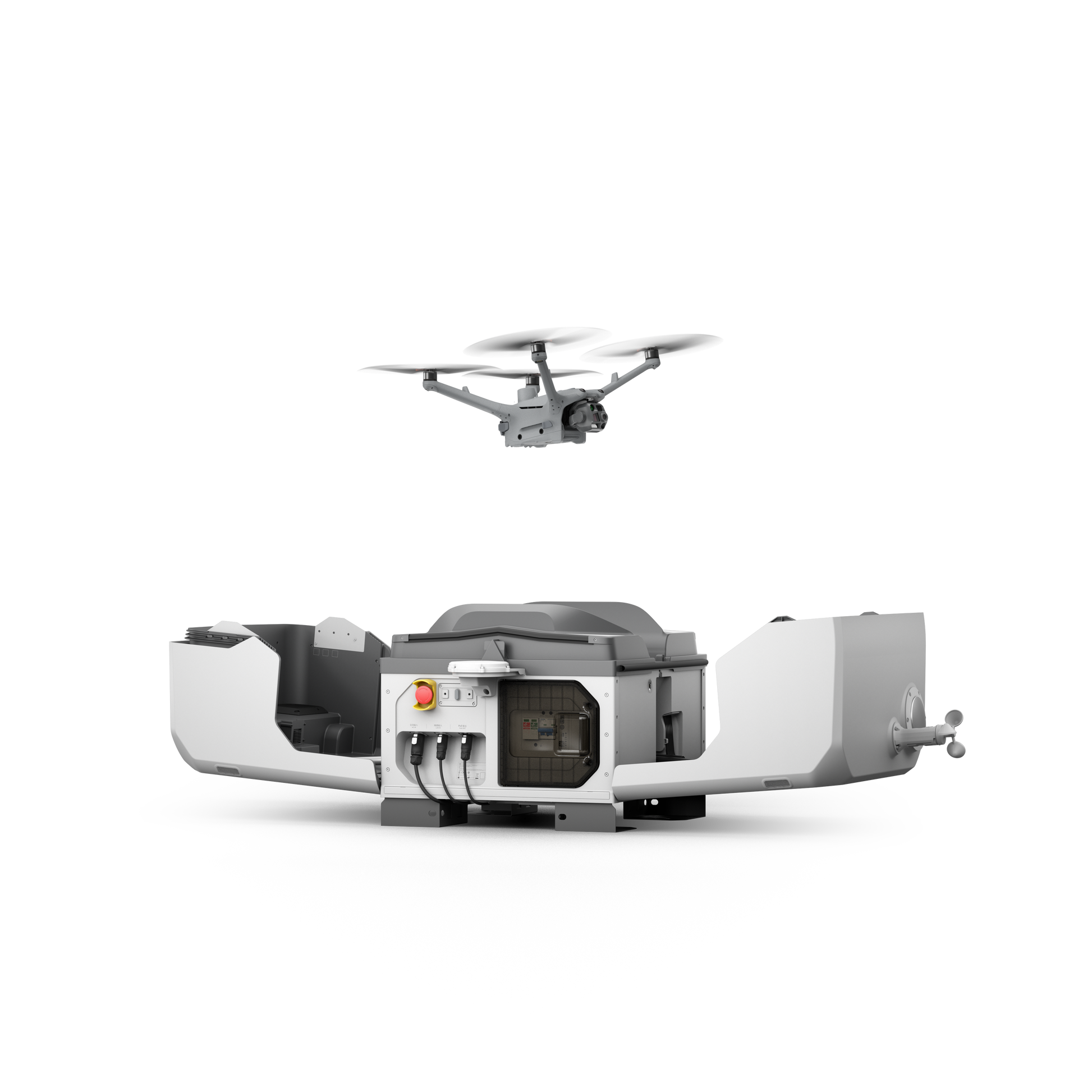

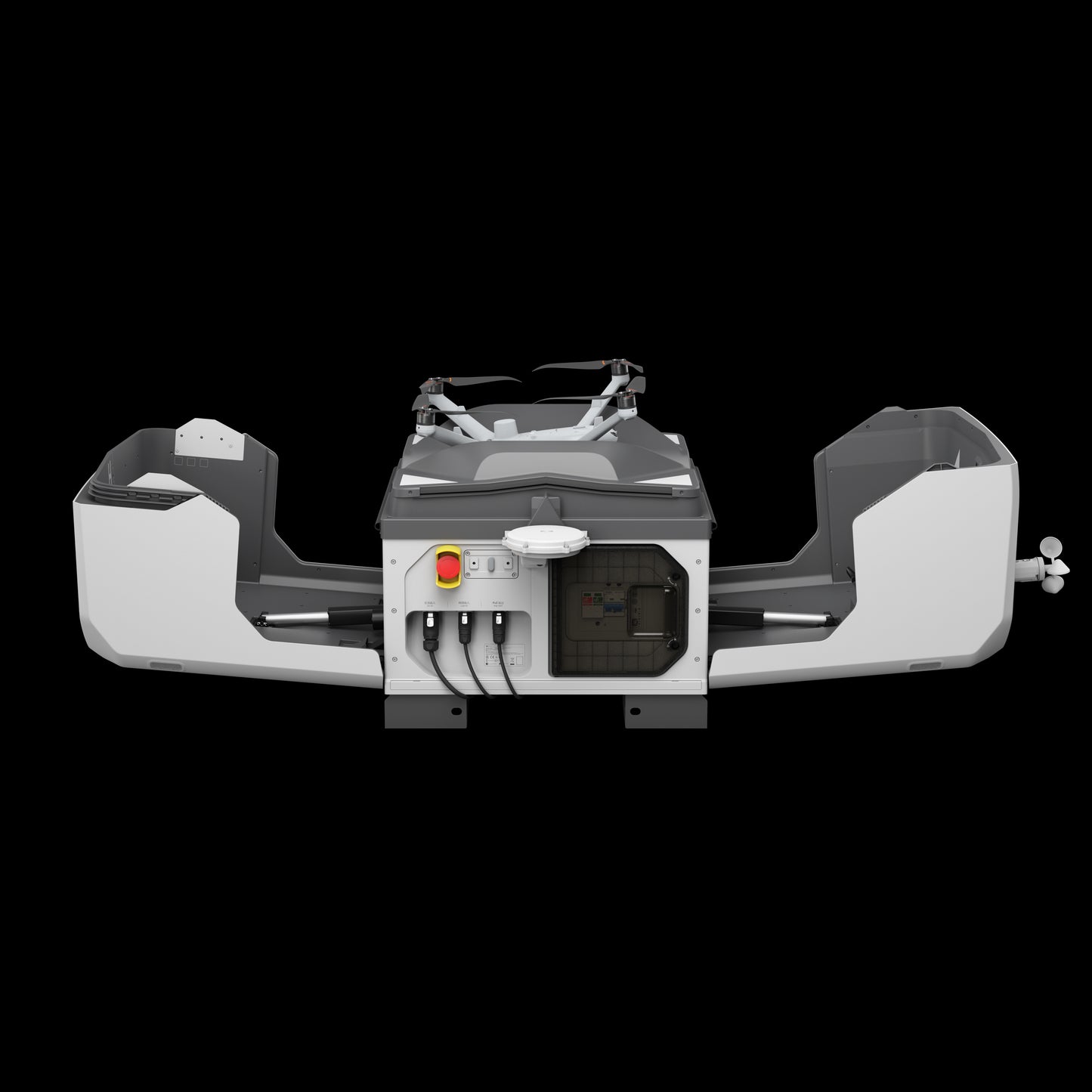

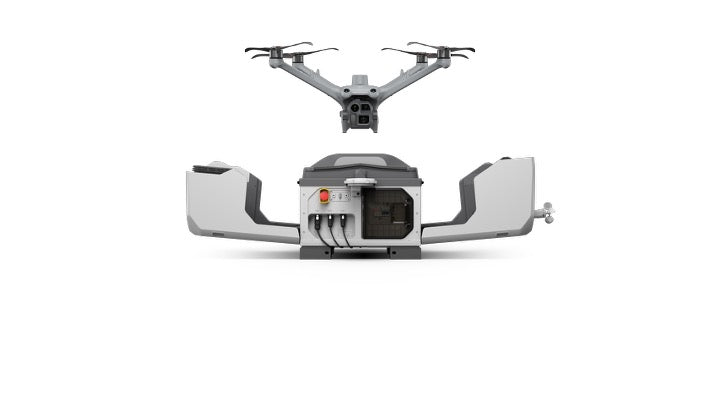

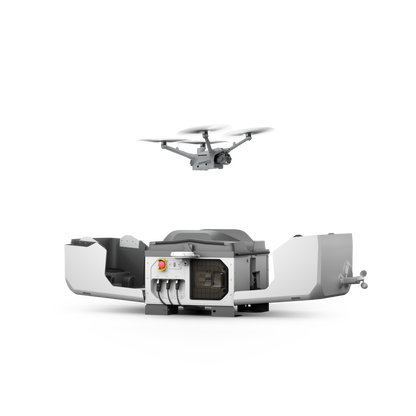

DJI Dock 3 with Matrice 4 is a 24/7 autonomous drone-in-a-box system optimised for remote mapping, surveying and visual inspection.
Full Description
Full Description
DJI Dock 3 with Matrice 4 is a 24/7 autonomous drone-in-a-box system optimised for remote mapping, surveying and visual inspection. The IP56-rated dock pairs with the M4D's 4/3 CMOS wide-angle and zoom cameras to deliver scheduled or on-demand missions for construction monitoring, structural inspection and Intelligent Change Detection workflows via FlightHub 2 - all without a pilot on site.
-
DJI Dock 3 Matrice 4 Dock Combo is the UK version with 1 yr Care Plan
-
Paired with the perfectly integrated DJI Matrice 4 Dock M4D, it is it is ideal for automated mapping.
-
The M4D has a mechanical shutter wide-angle camera specialised for mapping, tele and medium telephoto cameras, and laser rangefinder, plus night vision and AI capabilities.
-
The Dock 3 is IP56 and the M4D IP55 rated for dust and water ingress resistance.
-
Remember to choose your payloads - the Matrice 4 Obstacle sensing module, the AL1 Spotlight / AS1 Speaker which can be used separately or together, and DJI's edge processor, the Manifold 3.
-
Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.
-
Dedicated Survey Assistance - our DJI Dock 3 Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.
-
DJI Care Enterprise (Plus) cover for one year, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)
-
ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, choose the Managed Service option.
-
ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.
In The Box
In The Box
- DJI Dock 3 x 1
- Earth Cable x 1
- Anemometer / Wind speed gauge x 1
- IP rated power plug x 1
- IP rated Ethernet plug x 2
- Power cable crimp ends x 6
- Screwdriver x 1
- USB-C to USB-C Cable x 1
- DJI Matrice 4D Drone x 1
Please note, the Dock 3/Matrice 4 Dock combo is shipped without a M4D Series flight battery so this must be added separately.
Matrice 4 Dock (M4D) Specifications
Matrice 4 Dock (M4D) Specifications
- Weight 1850 g
- Max Takeoff Weight 2090 g
- Dimensions 377.7×416.2×212.5 mm (L×W×H, without propellers)
- Max Ascent Speed6 m/s (Normal Mode)10 m/s (Sport mode)
- Max Descent Speed6 m/s (Normal Mode)8 m/s (Sport mode)
- Max Horizontal Speed (at sea level, no wind)Normal Mode, With Obstacle Sensing Enabled:15 m/s flying forward,12 m/s flying backward,10 m/s flying sideways.Sport Mode:21 m/s flying forward,19 m/s flying backward,15 m/s flying sideways
- When used with DJI Dock, only Normal mode is supported.
- Max Wind Speed Resistance During Operation: 12 m/s
- During Takeoff/Landing: 12 m/s
- Max Takeoff Altitude 6500 m
- Max Flight Time 54 minute
- Max Hovering Time 47 minutes
- Max Operating Radius 10km
- Max Flight Distance 43 km
- Max Pitch Angle25° (Normal Mode)30° (Sport Mode)Max Angular Velocity 200°/s
- Global Navigation Satellite System:GPS + BeiDou + Galileo + QZSS + GLONASS(QZSS and GLONASS are supported only when the RTK module is enabled.)
- Hovering Accuracy Range (windless or breezy)Vertical:±0.1 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Horizontal:±0.3 m (with vision positioning)±0.5 m (with GNSS positioning)±0.1 m (with RTK positioning)Operating Temperature -20° to 50° C (-4° to 122° F)Ingress Protection Rating IP55
- Propeller Model 1364F foldable low-noise anti-ice propellers
- RTK Module Integrated on the aircraft
Sensor Payload details
Sensor Payload details
Image Sensor
- Wide: 4/3-inch CMOS, Effective Pixels: 20 MP
- Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
- Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
Wide Lens
- FOV: 84°
- Equivalent Focal Length: 24 mm
- Aperture: f/2.8-f/11
- Focus: 1 m to ∞
Medium Tele Camera
- FOV: 35°
- Equivalent Focal Length: 70 mm
- Aperture: f/2.8
- Focus: 3 m to ∞
Tele Camera
- FOV: 15°
- Equivalent Focal Length: 168 mm
- Aperture: f/2.8Focus: 3 m to ∞
ISO Range Normal Mode: ISO 100 to ISO 25600
Night Scene Mode
- Wide Camera: ISO 100 to ISO 204800
- Medium Tele Camera: ISO 100 to ISO 409600
- Tele Camera: ISO 100 to ISO 409600
Shutter Speed
- Wide: Electronic Shutter: 2-1/8000 s, Mechanical Shutter: 2-1/2000 s
- Medium Telephoto: 2-1/8000 s
- Telephoto: 2-1/8000 s
Max Photo Size
- Wide: 5280 × 3956
- Medium Telephoto: 8064 × 6048
- Telephoto: 8192 × 6144
Minimum Photo Interval DJI Matrice 4E: 0.5 s
Still Photography Modes
- Wide:Single: 20 MPInterval: 20 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sJPEG + RAW: 2/3/5/7/10/15/20/30/60 sSmart Shooting: 20 MPPanorama: 20 MP (raw image); 100 MP (stitched image)
- Medium Tele Camera:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP
- Telephoto:Single: 12 MP and 48 MPInterval: 12 MP/48 MPJPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 sSmart Shooting: 12 MP
Resolution:
- 4K: 3840 × 2160@30fps
- FHD: 1920 × 1080@30fps
- Max Video Bitrate H.264: 60 Mbps
- H.265: 40 Mbps
Supported File System exFAT
Photo Format:
- Wide: JPEG/DNG (RAW)
- Medium Tele Camera: JPEG
- Telephoto: JPEG
Video Format MP4 (MPEG-4 AVC/H.264)
Digital Zoom Telephoto: 16x (112x hybrid zoom)
Laser Module
- Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target*
- Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1 m
- Distance Measurement Accuracy:1–3 m: System Error <0.3 m, Random Error <0.1 meters @1σOther Distances: ±(0.2 + 0.0015D) (D represents the measurement distance in meters)
- * Performance degradation may occur in rainy or foggy conditions.
Vehicle Mounted Solution
Vehicle Mounted Solution
Vehicle mounted perfectly integrated Drone in a Box solution. Ideal for scaled Inspections, Contruction, Public Safety and Security.
Reliable in extreme conditions - the Dock 3 operates from -30°C to 50°C as it houses a full Air Conditioning / Heating system.
Its IP65 dust and water resistance rating means its can retain integrity and protect its internal systems (and the M4D!) in all weather, giving long term reliable operations.
frequently asked questions
DJI DOCK 3 + MATRICE 4 (M4D) DOCK COMBO
What's Intelligent Change Detection on FlightHub 2?
A new Dock 3 / M4D feature that periodically re-flies the same route and analyses changes in the area between flights. It's valuable for construction progress monitoring, environmental compliance, structural condition tracking and disaster damage assessment - all without a pilot reviewing footage manually.
How does the M4D's obstacle avoidance handle thin objects like power lines?
The Dock 3 / M4D combo can be specced with the Obstacle Sensing Module, which uses rotating LiDAR + millimetre-wave radar to detect 12mm wires at flight speeds up to 15 m/s - even in pitch-dark or visually complex environments like substations.
Why pick the M4D Dock combo over the M4TD version?
Choose the M4D Combo if your remote operations are focused on mapping, surveying, construction monitoring and high-detail visual inspection. The M4D's 4/3 CMOS 20MP wide-angle with mechanical shutter outperforms the M4TD's smaller wide camera for photogrammetry. Pick the M4TD only if thermal imaging is part of the mission profile.
